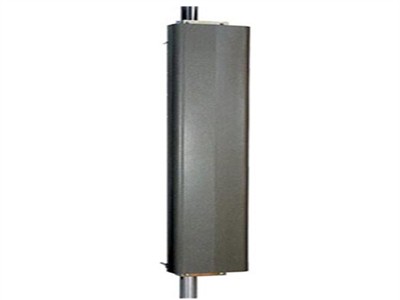

型号Model                                                             KTWTD-13090-08V      KTWTD-13090-09V

频率范围FrequencyRange                                         824-896(MHz)               890-960(MHz)

输入阻抗Input Impedance                                         50(Ω)

驻波比系数VSWR                                                       <1.5

增益Gain                                                                  13.5(dBi)

半功率波束(3dB)HPBW                                              90°H-plane  13°E-plane

前后比F/B                                                                 >23(dB)

功率容量Maximum Power                                         500(W)

极化方式Polarization                                                垂直极化Vertical Polarization

交调PIM                                                                   <-107(dBm)

接口Connector Type                                                7/16或N-K

闪电保护Lighting Protection                                     直接接地Direct Ground

抗风Wind Velocity                                                    200(km/h)

高/宽/厚Height/Width/Depth                                  1200/280/110(mm)

重量Weight                                                             13(Kg)

抱杆直径Hold Pole Diameter                                    φ50-φ114(mm)

Model                                                        KTWTD-13090-08V      KTWTD-13090-09V

FrequencyRange                                         824-896(MHz)               890-960(MHz)

Input Impedance                                         50(Ω)

VSWR                                                       <1.5

Gain                                                          13.5(dBi)

(3dB)HPBW                                              90°H-plane  13°E-plane

F/B                                                            >23(dB)

Maximum Power                                         500(W)

Polarization                                                Vertical Polarization

PIM                                                              <-107(dBm)

Connector Type                                              7/16 or N-K

Lighting Protection                                     Direct Ground

Wind Velocity                                                 200(km/h)

Height/Width/Depth                                  1200/280/110(mm)

Weight                                                          13(Kg)

Hold Pole Diameter                                    φ50-φ114(mm)
