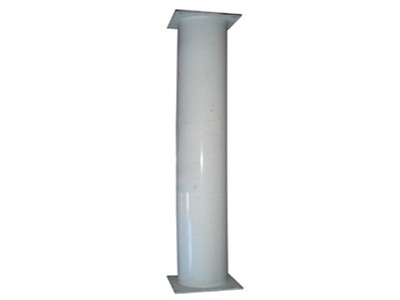

型号Model                                                                          TQWTF-12180-2.6H

频率范围Frequency Range                                                   2500-2700(MHz)

输入阻抗Input Inpedance                                                    50(Ω)

驻波比系数VSWR                                                                  <1.5

增益Gain                                                                            12(dBi)

半功率波束(3dB)HPBW                                                         6.5°E-plane    180°H-plane

前后比F/B                                                                            >12(dB)

功率容量Maximum Power                                                    500(W)

极化方式Polarization                                                           水平极化 Horizontal Polarization

接口Connector Type                                                            N-K

闪电保护Lighting Protection                                                 直接接地 Direct Ground

抗风Wind Velocity                                                               200(km/h)

长度Length                                                                         1035(mm)

重量Weight                                                                         5(Kg)
