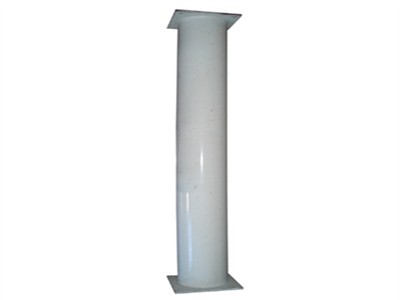

型号Model                                                                TQWTF-13180-2.6V

频率范围Frequency Range                                         2500-2700(MHz)

输入阻抗Input Inpedance                                          50(Ω)

驻波比系数VSWR                                                        <1.5

增益Gain                                                                   13(dBi)

半功率波束(3dB)HPBW                                               6°E-plane   180°H-plane

前后比F/B                                                                  >12(dB)

功率容量Maximum Power                                          500(W)

极化方式Polarization                                                 垂直极化 Vertical Polarization

接口Connector Type                                                 N-K

闪电保护Lighting Protection                                      直接接地 Direct Ground

抗风Wind Velocity                                                     200(km/h)

长度Length                                                               1075(mm)

重量Weight                                                              6(Kg)
