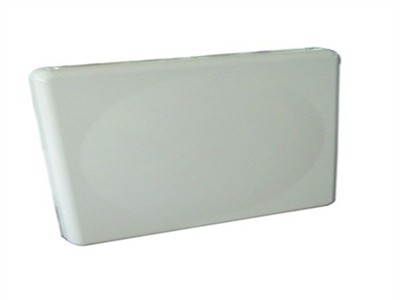

型号 Model                                                    TQWTD-18024-2.4V

频率范围FrequencyRange                               2400-2500(MHz)

输入阻抗Input Impedance                              50(Ω)

驻波比系数VSWR                                             <1.5

增益Gain                                                        18(dBi)

半功率波束(3dB)HPBW                                    24°H-plane     20°E-plane

前后比F/B                                                       >28(dB)

功率容量Maximum Power                                50(W)

极化方式Polarization                                      垂直极化Vertical Polarization

接口Connector Type                                       N-K

闪电保护Lighting Protection                            直接接地Direct Ground

抗风Wind Velocity                                           200(km/h)

高/宽/厚Height/Width/Depth                           366/366/35(mm)

重量Weight                                                    2.5(Kg)

抱杆直径Hold Pole Diameter                           φ40-φ60(mm)
