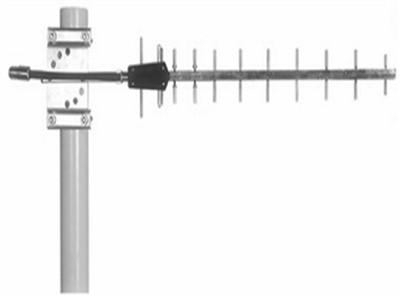

型号Model                                                                      TQWTY-12-1.8/1.9V

频率范围FrequencyRange                                               1710-1990(MHz)

输入阻抗Input Impedance                                               50(Ω)

驻波比系数VSWR                                                             <1.5

增益Gain                                                                        12(dBi)

半功率波束(3dB)HPBW                                                    38°H-plane    36°E-plane

前后比F/B                                                                       >15(dB)

功率容量 Maximum Power                                              200(W)

极化方式Polarization                                                      垂直极化Vertical Polarization

接口Connector Type                                                      N-K

闪电保护Lighting Protection                                           直接接地Direct Ground

抗风Wind Velocity                                                         200(km/h)

长度Length                                                                   700(mm)

结构Structure                                                                11单元

重量Weight                                                                   0.8(Kg)

抱杆直径Hold Pole Diameter                                          φ40-φ60(mm)
